What Is Battery Based Energy Storage And Its Analysis?
Overview of Energy Storage Battery PACK
An energy storage battery PACK, also known as a battery module or battery pack, consists of multiple single cells connected in series and/or parallel, integrated with a battery management system (BMS) and protective features to form an independent, rechargeable energy storage unit.
In the renewable energy sector—such as solar and wind power—due to the intermittency of power generation, energy storage battery PACKs are required to store excess electricity and release it when needed, ensuring stable power supply. With the rapid growth of renewable energy, the demand for energy storage PACKs continues to rise. For example, in large solar power stations, a storage battery pack can store several megawatt-hours of electricity to support grid stability.
In the electric vehicle (EV) industry, energy storage PACKs serve as the core power source, determining vehicle range and performance. Lithium-ion batteries are currently the primary choice for EV power sources due to their high energy density and long cycle life. High-end EV battery PACKs may exceed 100 kWh, enabling a driving range well over 500 km.
In summary, energy storage battery PACKs play a crucial role in renewable energy systems and electric vehicles. They improve energy utilization efficiency, reduce reliance on fossil fuels, and contribute actively to sustainable development.
1. Design Considerations and Case Analysis
1.1 Key Design Considerations
1.1.1 Explosion-proof design using PUW vents for rapid pressure relief
When lithium battery packs experience thermal runaway, internal pressure rises sharply, posing explosion risks. PUW explosion-proof vents provide rapid pressure release to avoid catastrophic damage. In numerous energy storage projects, PACKs equipped with PUW vents successfully prevented explosions during thermal runaway incidents, ensuring safety for personnel and equipment.
1.1.2 Maintaining internal and external pressure balance to ensure reliability
Temperature fluctuations during charge/discharge cycles cause pressure changes inside the PACK. PUW valves provide ventilation while preventing water ingress, keeping internal pressure equalized with ambient pressure. PACKs designed with this feature show reduced performance degradation and improved long-term stability.
1.1.3 Battery management system design ensuring protection against overcharge and over-discharge
A well-designed BMS is essential for safety, monitoring, and performance optimization. It controls overcharge, over-discharge, over-temperature, measurement accuracy, and cell balancing. Advanced BMS designs can precisely manage charge/discharge procedures, minimizing risks.
1.1.4 Mechanical design addressing strength, vibration resistance, and thermal management
Key mechanical considerations include strength, vibration resistance, heating/cooling, waterproofing, and dust-proofing. Using high-strength materials and optimized structures ensures durability under external forces, while improved heat dissipation extends battery life and performance.
1.1.5 Waterproof and anti-vibration design to prevent internal structural damage
Lithium cells submerged in liquid may short-circuit, leading to continuous discharge and internal damage. PACK designs must ensure adequate waterproofing (IP rating) and vibration resistance, especially for harsh environments such as seismic regions or outdoor installations.
1.1.6 Temperature management to optimize performance and longevity
Temperature is a dominant factor affecting PACK structure and performance. Excessive heat impacts internal resistance, voltage, SOC, available capacity, efficiency, and lifespan. Effective thermal management—such as air cooling or liquid cooling—helps maintain optimal operating temperatures.
1.1.7 Material selection ensuring high-voltage insulation and structural strength
Insulation and mechanical strength are critical. Nylon materials reinforced with 5%–45% glass fiber provide improved tensile strength and vibration resistance, ensuring safe high-voltage operation and structural reliability.
1.2 Case Studies
1.2.1 Liquid cooling plate design—characteristics and selection
Liquid cooling plates are essential for thermal management. Different types offer trade-offs between performance and cost. High-performance applications may select premium cooling plates, while cost-sensitive scenarios may choose simpler solutions.
1.2.2 LG energy storage module and PACK design analysis
LG's designs feature clear differentiation between energy-type and power-type cells. Structurally, LG uses standardized small modules stacked into larger modules, offering flexibility and scalability for different energy storage systems.
1.2.3 Simulation and experimental research on PACK thermal design
Advanced research combines thermal simulation with physical experiments to optimize PACK thermal design. Multi-objective optimization approaches consider safety, performance, and cost, achieving improved thermal uniformity and system reliability.
2. Components and Technical Parameters
2.1 Main Components
2.1.1 Single cells—energy storage units
Common cell types include lithium-ion, lead-acid, and nickel-metal hydride. Lithium-ion cells dominate due to high energy density and long cycle life. Lead-acid remains viable for low-cost applications. NiMH is valued in certain safety-sensitive segments.

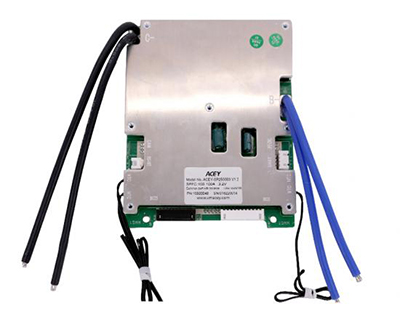

2.1.2 Battery Management System (BMS)—monitoring and protection
The BMS monitors voltage, current, temperature, controls charge/discharge, prevents overcharge, over-discharge, overload, and provides balancing. It also enables remote monitoring and communication with external systems.
2.1.3 Thermal management system—maintaining optimal temperature
Thermal systems (air cooling, liquid cooling) maintain PACK temperature uniformity. Liquid cooling is preferred in high-power energy storage due to higher cooling efficiency. A typical requirement is a temperature difference ≤5°C.
2.1.4 Electrical system—power transmission and distribution
The electrical harness includes high-voltage and low-voltage wiring. High-voltage cables act as the PACK's "arteries," while low-voltage harnesses serve as the "nervous system," transmitting signals and control commands.
2.1.5 Enclosure and structural frame—protection and support
The enclosure protects components from mechanical impact, vibration, water, and dust. The internal frame ensures structural integrity and positions all components securely.
2.2 Technical Parameters
2.2.1 Capacity—measure of stored energy
Measured in Ah or kWh. Higher capacity means more stored energy. Example: a 100 kWh PACK can power a home for several days.
2.2.2 Energy density—performance indicator
Higher energy density means higher performance and lower weight/volume. High-quality lithium-ion cells exceed 200 Wh/kg.
2.2.3 Charge/discharge efficiency—energy conversion efficiency
Lithium PACKs typically achieve >90% efficiency. Higher efficiency lowers energy losses and operating costs.
2.2.4 Cycle life—service longevity
Top-tier lithium PACKs offer thousands to tens of thousands of cycles depending on chemistry and application.
2.2.5 Safety—protection and thermal management
Safety includes overcharge, over-discharge, short-circuit protection, and thermal runaway mitigation. Some PACKs include fire suppression systems such as FK-6 extinguishing agents.
3. Design Process and Analytical Methods
3.1 Design Process
3.1.1 Cell selection and grading

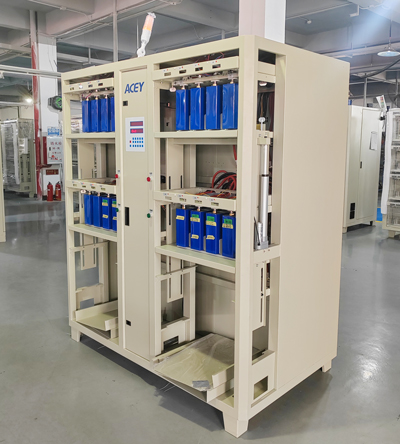

Cells must be tested and graded for consistency in capacity, internal resistance, and voltage. According to statistics, by testing and grading a large number of battery cells, the consistency of performance and quality can be ensured to be over 98%. After the capacity of the battery is graded by lithium ion cell grading machine and the voltage and internal resistance of the battery are graded by lithium cell sorting machine, the battery cells can be classified and stored according to different performance levels, preparing for subsequent assembly work.
3.1.2 Cell assembly and connection
Cells are connected through welding or compression methods. Laser welding is widely used for its precision, small heat-affected zone, low resistance, and suitability for multi-material welding.
3.1.3 BMS integration
BMS integration ensures monitoring, communication, balancing, and protection. Proper calibration and testing are essential for PACK reliability.
3.1.4 Enclosure sealing and thermal considerations
Enclosures—often aluminum alloy—require good mechanical strength, heat dissipation, and environmental protection. Proper mounting prevents vibration and ensures stable operation.
3.1.5 System testing and quality control
Testing includes performance, capacity, cycle life, and safety tests (overcharge, short-circuit, impact). Stringent testing ensures compliance with design specifications.
3.2 Analytical Methods
3.2.1 Understanding the PACK definition
A PACK is formed by connecting multiple cells in series/parallel and integrating mechanical, thermal, and electrical systems. Key technologies include structure design, welding process, protection rating, and active cooling.
3.2.2 Understanding PACK components
Components include cell modules, electrical systems, thermal management, enclosure, and BMS—each performing essential functions analogous to the human heart, nerves, skeleton, and brain.
3.2.3 Understanding PACK characteristics and design requirements
PACKs require high cell consistency, proper voltage/capacity matching, balanced charging, and monitoring of current, voltage, and temperature.
3.2.4 PACK configuration and manufacturing methods
Series increases voltage, parallel increases capacity. Common welding methods include laser welding, ultrasonic welding, pulse welding, and elastic metal contact. Models such as 1P24S represent 24 cells in series and 1 in parallel.
3.2.5 Understanding PACK performance specifications
Rated voltage = cell voltage × series count.
Rated energy = capacity × voltage.
Cycle life and efficiency determine long-term performance.
Safety features include protections and thermal management.
